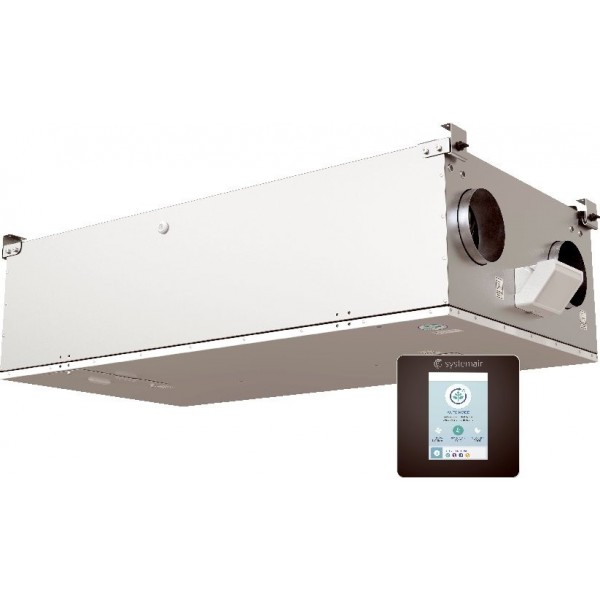

SAVE VSR 150/B

SAVE VSR 150/B is a unit with double skinned panels and white painted doors. The unit is equipped with a high efficiency variable speed rotating heat exchanger and a moisture transfer function that regulates the rotation speed of the rotor. Energy efficient fans with EC motors as well as low pressure filters reduces the energy consumptions and gives low SFP factor (Specific Fan Power) and low sound. The built in humidity sensor in extract air can be used for demand control.

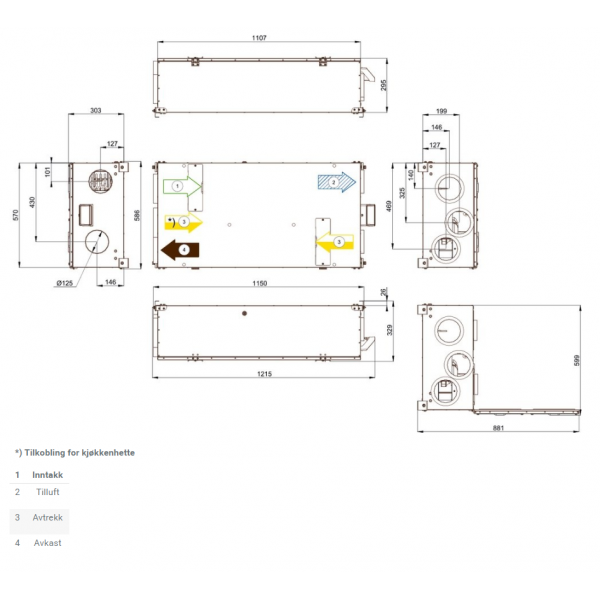

The unit can be mounted on the wall or under the ceiling.

A duct from the cooker hood can be connected to a separate bypass duct on the unit, so the air from the cooker hood is led straight to the exhaust fan and not through the heat exchanger in the unit.

Simple filter change via hatches on the door.

All settings and features are accessible via the SAVE Touch control panel which is integrated in the front door. The panel is a color touch screen with a user friendly interface. The option for connecting one or more external control panels is available. In addition, control panel has separate user level for authorized installers and service personnel.

The home screen displays information such as airflow, temperature, air quality and active functions. You can select between MANUAL and AUTO mode or choose preferred settings from the pre-configured user modes.

SAVE Touch AUTO mode has many functions available that regulate the airflow according to CO2, presence, humidity, schedule etc. The demand function control gives effective and economical operation to ensure best indoor air quality. Alarm symbols indicate possible malfunctions and issues direct alerts if anything needs to be rectified.

The unit comes with built-in electric reheater.

External connection board that has prewired inputs and outputs allows easy installation and setup of external sensors as well as external heaters / coolers and other accessories.
